pureGATE
pureGATE is an industrial-grade LoRa gateway designed for reliable long-range communication up to two kilometers. It seamlessly connects with all pureSignal products refining and routing their data to ensure accuracy and performance. The gateway offers flexible connectivity via 4G, Ethernet, or WiFi. For demanding environments, pureGATE is also available in an IP65-rated version.
.png)
.png)
pureGATE - now IP-rated
The pureGATE Core and IP makes it easy to connect and monitor your industrial processes. Whether you need a compact solution for indoor environments (Core) or a rugged gateway for outdoor use (IP), you get reliable long-range communication - up to two kilometers.
Supporting up to 50 sensors, you can continuously track vibration (velocity and acceleration), surface temperature, rotational speed and lubrication status. Built-in LoRa, 4G, and WiFi ensure stable connectivity, while 128-bit encryption and VPN keep your data secure.
For you as a customer, pureGATE offers simple installation, minimal downtime, transparent data monitoring, and a flexible solution that scales with your business. When multiple gateways are installed at the same site, you also gain redundancy—if one gateway goes down due to power failure or maintenance, the others automatically take over. Invest in reliable, efficient, and future-ready IoT communication.
Download here and connect to your pureSignal system.

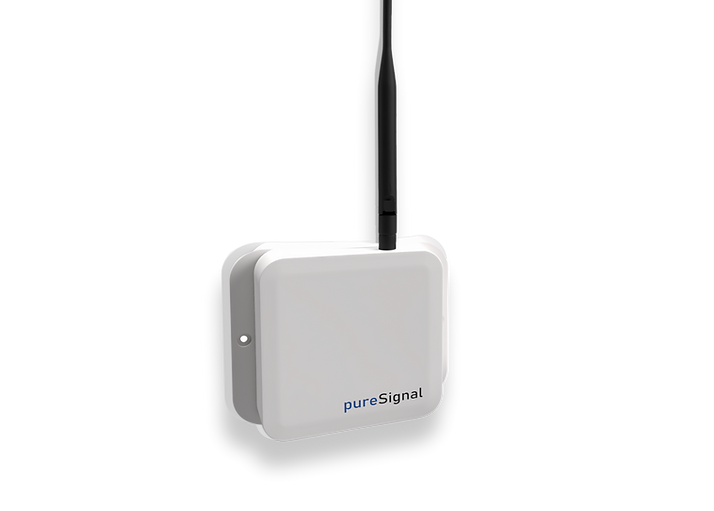

pureGATE Core
pureGATE Core is a compact and powerful industrial LoRa gateway for long-range communication up to two kilometers. It is designed for stable indoor environments and features an IP21 rating with an operating temperature range from 0 to 85°C.
The gateway can handle up to 50 sensors measuring time series and trends such as velocity, acceleration, temperature, and rotational speed. It is equipped with integrated 433/868/915 MHz LoRa antennas as well as built-in 4G and WiFi support. If needed, an external omnidirectional antenna can be connected.
pureGATE Core uses USB-C for power supply and ensures secure communication with 128-bit AES encryption (LoRa) and fixed IP over VPN (4G). Updates are easily performed via OTA (Over-the-Air), and integration with the pureSignal Cloud Restful API makes it a flexible and future-proof solution.

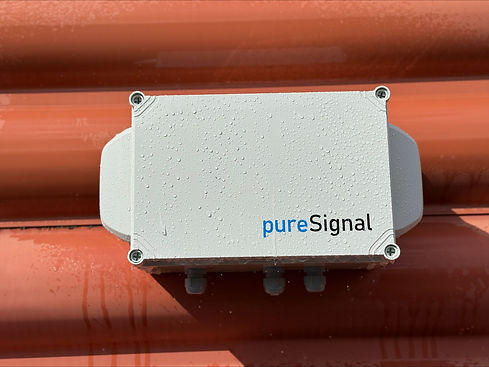

pureGATE IP
pureGATE IP is the robust version of pureSignal’s industrial gateway, developed for demanding environments. With an IP65 rating and an operating temperature range from -20 to 85°C, it withstands moisture, dust, and harsh operating conditions.
Just like the Core version, pureGATE IP can handle up to 50 sensors for time series and trend measurements (velocity, acceleration, temperature, rotational speed) with a range of up to two kilometers. It comes with an external omnidirectional 433/868/915 MHz LoRa antenna, built-in 4G and WiFi support, and the option to connect an additional outdoor antenna for optimal coverage.
Power is supplied via 240/110 VAC, and communication is secured with 128-bit AES encryption (LoRa) and fixed IP over VPN (4G). OTA updates and integration through the pureSignal Cloud Restful API ensure that pureGATE IP can be easily adapted and scaled for industrial IoT solutions.
Designed for managing many sensors over large distances
-
Handle trend and time-signal measurement using long-range radio communications
-
Flexible and scalable radio connectivity
-
IP65 rated for harsh environments
-
Redundant gateway handling
